Kino Flo

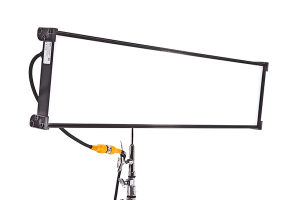

FreeStyle Air

SKU: QUICKQ30-2-1-1 Category: Tags: , , , , , , , , , , ,


The FreeStyle Air arrives ready to take its place as a lightweight accessory that integrates seamlessly with existing FreeStyle systems. Compatible with FreeStyle mounts, extension cables and LED-140 & LED-150 Series controllers, this portable thin profile panel offers the advantages of easy deployment and favorable cost of ownership to current FreeStyle owners and operators.

In addition to a twist-on mount for light stands, and corner bumpers for 4-point hangs, the FreeStyle Air comes with eyelets to simplify overhead and other surface attachment. Its rigid construction prevents any flex when handling and safeguards the integrity of its components. Usable LED life is extended with a proven passively-cooled design that ensures color and luminosity remain stable over the rated life of the LEDs.

Ease of maintenance is built into a user serviceable design. It features a removable upper rail and quick access to pull-out LED platens that are easily replaced or repaired.

Combining new mobility and reliable performance with familiar features, the FreeStyle Air delivers Kino Flo’s renowned Color Science LED technology in this lightweight addition to the range.


Colour Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
Kelvin presets, plus Kino Flo presets and Gels
Dial-in colour temperature control between 2500K-9900K + Green/Magenta Control
CIE xy / RGB/ HSI /  FX
Camera Profiles LUTs
Colour Space selection
Light levels do not change when selecting Kelvin settings
The firmware is updatable from a PC using the Mini B USB data port


DMX wireless link (Lumen Radio®)
DMX Auto Terminate
No colour shift while dimming
Quiet operation
KinoGrip Centre Mount
Universal input 100VAC-240VAC or 24VDC
Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC

Weights and Dimensions:

Width 1000mm (39.5 inches)
Depth: 50mm (2 inches)
Height: 330mm (13 inches)
Weight: 2kg (5 lbs)
