Description
Say hello to our next-generation multi-purpose light. In addition to being a battery-powered uplight and spotlight with 5 different beam options, multiple PixelBricks can be connected to form clusters and shapes. With about 10cm edge length and 1kg weight, it is small and lightweight while still featuring a powerful output of high-quality light which meets the highest demands of film, TV and stage clients.
SPECIFICATIONS
LED Engine: Titan LED Engine
Colors: RGBMintAmber
Total LED Power: 15 W
LED Power draw: 12 W
Luminous Flux 2700K: 405 Lumens
Luminous Flux 3200K: 475 Lumens
Luminous Flux 5500K: 395 Lumens
Light Output 2700 K @ 1m: 6178 Lux
Light Output 3200 K @ 1m: 7144 Lux
Light Output 5500 K @ 1m: 5985 Lux
CRI(Ra)/TLCI 3200-6500K*: ≥96
Beam Angle: 13°
Field Angle: 25°
Strobe: 0 – 25 Hertz
Pixel: 1
Battery Runtime: Up to 20 hours
Battery Lifetime: 70 % after 300 cycles
DC Input: 24 VDC – 0.8 A
DC Connector: 5.5 mm x 2.1 mm
Power Consumption (max.): 20 W

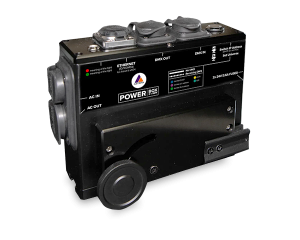

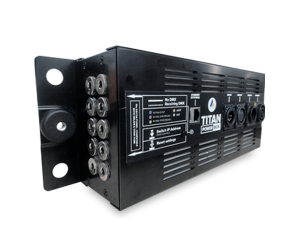

Wired DMX: Yes via PWB-2-86 (FP1-PWB / FP3-DTL)
CRMX Receiver: Built-in
BluetoothBridge BTB: Built-in
Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
Wireless Range: CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds
Infrared Control: Yes
PHYSICAL
Dimensions: 91 mm x 91 mm x 94 mm (3.6″ x 3.6″ x 3.7″)
Weight: 1.12 kg (2.47 lbs)
Ambient Operating Temperature: 0 – 40 °C (32 – 104 °F)
IP Rating: IP65 with power cable (wireless with PB15-PLG)
Housing Material: Polymer & Metal
Mounting Options: 4x Airline Tracks, 4x M5 threads, BrickBracket
